klik

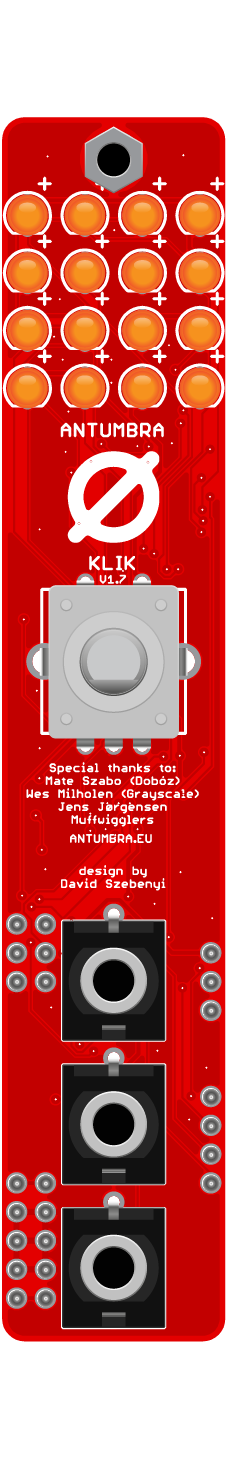

16 STEP TRIGGER SEQUENCER

KLIK is a small and simple 16 step trigger sequencer with an intuitive interface. It features a 4x4 LED matrix as the interface which is easily navigated with the encoder and it's pushbutton.
This interface enables a simple menu, which allows you to access several features, like euclidean mode, sequence length, direction, and different ways of random pattern generation.

Triggered random pattern generation is available through the reset jack.

For more information, please read the manual!

Technical Specs

CURRENT DRAW:

  • +12V:   100mA
  • -12V:   0mA
  • +5V:    0mA

DIMENSIONS:

  • WIDTH:   4HP
  • DEPTH:   20mm

BUILD DIFFICULTY: MEDIUM

  • difficulty
    Firmware upload via programmer required

RESOURCES

BUY DIY klik
