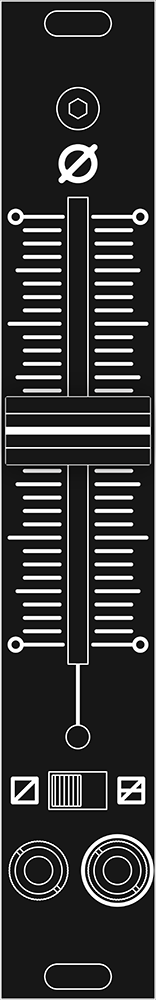

| Name: | Qty: | Value: | Index: | Specs: | Package: | Mouser reference: | Note: | |
|---|---|---|---|---|---|---|---|---|
| SMD parts: | ||||||||
| Resistor (1%) | 3 | 1k | R4 R12 R13 | 0603 | 603-RT0603FRE071KL | |||
| Resistor (1%) | 1 | 10k | R1 | 0603 | 603-RT0603FRE1310KL | |||
| Resistor (0.1% thin film) | 9 | 100k | R2 R3 R5 R6 R7 R8 R9 R10 R11 | 0603 | 603-RT0603BRB07100KL | |||
| Capacitor (ceramic) | 4 | 100nF | C1 C2 C5 C6 | >= 16V | 0603 | 81-GRM188R71E104JA1J | ||
| Capacitor (ceramic) | 1 | 22pF | C7 | <= 2% >= 25V | 0603 | 81-GRM1885C1H220GA1J | ||
| Capacitor (electrolytic) | 2 | 10uF | C3 C4 | >= 25V | Panasonic B (3mm dia) | 667-EEE-1EA100WR | ||
| 1N5819HW diode | 2 | D1 D2 | SOD123 | 621-1N5819HW-F | ||||
| LM4040 shunt Vref | 1 | 10V | U1 | SOT23 | 595-LM4040C10IDBZR | |||
| TL072 dual op-amp | 1 | U3 | SOIC8 | 595-TL072CD | ||||
| TL074 quad op-amp | 1 | U2 | SOIC14 | 595-TL074CDR | ||||
| SMD LED | 2 | 1206 | 630-HSMA-C150 | |||||
| Other parts: | ||||||||
| Slide pot | 1 | B10k | 652-PTA6432015CPB103 | |||||
| Toggle switch (SPDT) | 1 | 633-CS12ANW03 | ||||||
| 3mm LED (red/green, 2pos) | 1 | LED1 | 604-WP937EGW | |||||
| 2x8 Male header | 2 | 649-77313-418-16LF | ||||||
| 1x3 Male header | 4 | 571-4-103321-5 | ||||||
| Jumper | 4 | 517-9691020000DA | ||||||
| 10mm Spacer | 1 | 855-R30-1001002 | ⚠Female-Female | |||||
| Thonkiconn Jack | 2 | J1 J2 | ⚠https://www.thonk.co.uk/shop/3-5mm-jacks/ | |||||
| M3x5 Screw | 2 | ⚠Recommended: http://www.ebay.com/itm/25-50-100pcs-Black-Steel-Metric-Thread-M3-Button-Head-Hex-Socket-Cap-Screw-Bolt-/301846940915?var=&hash=item46477accf3 | ||||||
| Slide pot knob | 1 | ⚠Recommended: http://www.ebay.com/itm/251912353572?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT |
