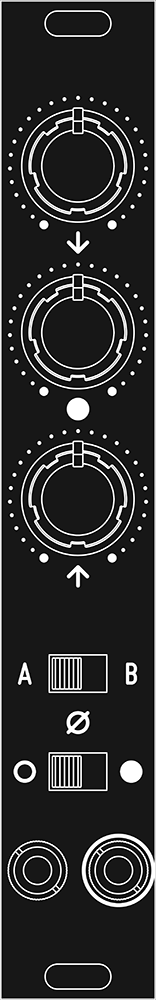

PCB V1.2

SELECT VERSION

INFO

CHANGELOG / NOTES

  • Added an other opamp circuit to boost the output signal

submit a photo of your build!

Maximum file size: 3Mb

By submitting a photo you accept that the photo can be published on the Antumbra Instagram page with your profile tagged (if handle is provided) or the Antumbra website

Name:Qty:Value:Index:Specs:Package:Mouser reference:Note:
SMD parts:
Resistor (1%)1470rR90603603-RT0603FRE07470RL
LED R
Resistor (1%)11kR100603603-RT0603FRE071KL
Resistor (1%)14.7kR70603603-RT0603FRE074K7L
Resistor (1%)210kR1 R80603603-RT0603FRE0710KL
Resistor (1%)130kR1 R80603603-RT0603FRE0730KL
Resistor (1%)51MR2 R3 R4 R5 R60603603-RT0603FRE071ML
Capacitor (ceramic)110pFC3>= 16V060381-GCM1885C1H100JA6D
Capacitor (ceramic)31nFC1 C7 C10>= 16V060381-GRM39C102J25
Capacitor (ceramic)110nFC2>= 16V060381-GRM1885C1E103JA1D
Capacitor (ceramic)147nFC5>= 16V060381-GCJ188R71E473KA1D
Capacitor (ceramic)3100nFC9 C12 C13>= 16V060381-GCJ188R71E104KA2D
Capacitor (electrolytic)21uFC4 C6>= 25VPanasonic B (3mm dia)667-EEE-HB1H1R0R
Capacitor (electrolytic)210uFC8 C11>= 25VPanasonic B (3mm dia)667-EEE-1EA100WR
1N5819HW diode2D5 D6SOD123621-1N5819HW-F
TL071 single op-amp2U1 U2SOIC8595-TL071CDR
SMD LED21206630-HSMA-C150
Other parts:
Potentiometer1A10KPOT3
Potentiometer1A100KPOT1
Potentiometer1A1MPOT2
Diode A - Recommended: 1n270 (from Tayda for example)2D1 D2
Diode B - Your choice, feel free to experiment with different diodes, LEDs. Recommended: 1n41482D3 D4
Toggle switch (SPDT)2633-CS12ANW03
2x5 Male header1
1x3 Male header1571-4-103321-5
Jumper1517-9691020000DA
Thonkiconn Jack2J1 J2
