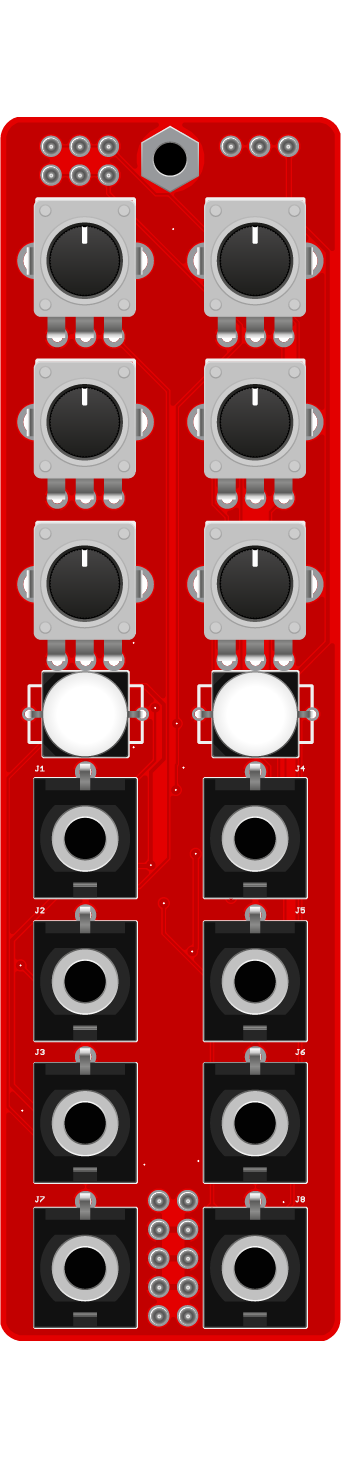

6MIX

6 CHANNEL UTILITY MIXER

6MIX is a six channel DC coupled utility mixer, for mixing audio or CV signals. It is split in two groups of three channels, both with their respective mute buttons. Group 1 is normaled to group 2 so you can use it as a 1x6 channel mixer. A header on the back allows you to chain multiple units for even more inputs.

TECHNICAL SPECS

CURRENT DRAW:

◦ +12V:

43mA

◦ -12V:

5mA

◦ +5V:

0mA

DIMENSIONS:

◦ WIDTH:

6HP

◦ DEPTH:

20mm

BUILD DIFFICULTY: EASY

  • Components are placed sometimes a bit dense
