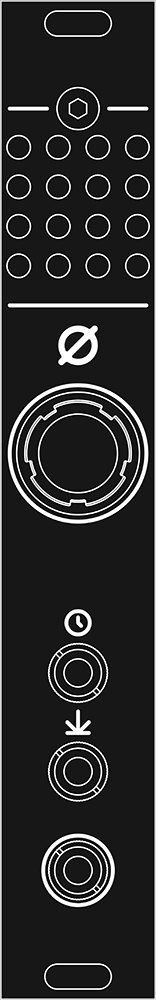

PCB V1.7

SELECT VERSION

INFO

CHANGELOG / NOTES

  • Changed layout to fit with the unified Antumbra layout
  • Added jack lights
  • Added some power decoupling capacitors for good practice

submit a photo of your build!

Maximum file size: 3Mb

By submitting a photo you accept that the photo can be published on the Antumbra Instagram page with your profile tagged (if handle is provided) or the Antumbra website

Name:Qty:Value:Index:Specs:Package:Mouser reference:Note:
SMD parts:
Atmega 328P-AU microcontroller1U2TQFP-32556-ATMEGA328P-AU
TLC59401PWP1U3HTSSOP-28595-TLC5940PWPR
L7805 5V voltage regulator1U1TO-252511-L7805CDT-TR
16MHZ crystal116MHZQ1HC-49/S549-CY16BPSMD
1N5819HW diode1D1SOD-123621-1N5819HW-F
MMBT3904 NPN transistor2Q2 Q3SOT-23512-MMBT3904
Resistor2470R6 R100603603-RT0603FRE07470RL
Resistor11kR90603603-RT0603FRE071KL
Resistor12.2kR40603603-RT0603FRE072K2L
Resistor410kR1 R2 R3 R50603603-RT0603FRE0710KL
Resistor2100kR7 R80603603-RT0603FRE07100KL
Capacitor (ceramic)4100nFC5 C6 C7 C8060381-GRM188R71E104JA1J
Capacitor (ceramic)222pFC2 C3060381-GRM1885C1H220GA1J
Capacitor (electrolytic)210uFC1 C4>=25VPanasonic B667-EEE-1EA100WR
SMD LED3 1206630-HSMD-C150
For jack lights
Other parts:
Encoder1SW1858-EN11-HSM1AF15
Thonkiconn Jack3J1 J2 J3
3mm single color LED16L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 604-WP132XYD
2x5 Male header1649-67997-410HLF
2x3 Male header1649-67996-406HLF
1x3 Male header1
Spacer (female-female)1855-R30-1001002
M3x5 screw2
Jumper2517-9691020000DA
