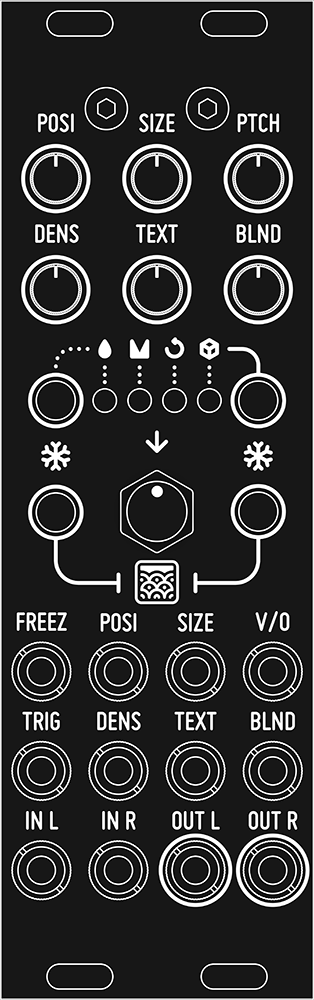

smog

PCB V1.1

INFO

CHANGELOG / NOTES

Initial release

submit a photo of your build!

Maximum file size: 3Mb

By submitting a photo you accept that the photo can be published on the Antumbra Instagram page with your profile tagged (if handle is provided) or the Antumbra website

Name:Qty:Value:Index:Specs:Package:Mouser reference:Note:
Brain board
SMD parts:
Resistor, 5%, 250mW14,7R11060371-RCS06034R70JNEA
Resistor, 1%1470R300603667-ERJ-3EKF4700V
Resistor, 1%22.2kR40 R410603667-ERJ-3EKF2201V
Resistor, 1%210kR13 R170603667-ERJ-3EKF1002V
Capacitor, ceramic418pFC6 C7 C47 C48060381-GRM185C1H180JA01J
Capacitor, ceramic12100nFC3 C8 C14 C16 C17 C18 C25 C26 C29 C30 C32 C34>= 16V060381-GRM188R71E104JA1J
Capacitor, ceramic21uFC12 C50>= 10V060381-GRM18R61A105KA61J
Capacitor, ceramic22.2uFC19 C24>= 10V0805810-C2012X5R1A225K-2
Capacitor, electrolytic210uFC28 C49>= 16VPanasonic A647-UWX1C100MCL2
Capacitor, electrolytic210uFC31 C35>= 16VPanasonic B598-AVE106M16B12T-F
Capacitor, electrolytic547uFC1 C2 C4 C13 C27>= 25VPanasonic D667-EEE-FK1V470P
1N5819HW diode2D1 D2SOD123621-1N5819HW-F
8 MHz quartz1Q3HC49815-ABLS2-8-D4Y-T
12.288 MHz quartz1Q4HC49815-ABLS2-12.2-D4Y-T
LM1117-3.3V LDO Vreg13.3VIC2TO252926-LM1117DT-3.3NOPB
LM1117-3.3V LDO Vreg13.3VIC7SOT223926-LM1117MPX3.3NOPB
LM4040 Shunt Vref110VIC6A, B or C gradeSOT23595-LM4040C10IDBZR
STM32F405RGT61IC5TQFP64511-STM32F405RGT6
WM8731 audio codec1IC8SSOP28238-WM8731SEDS/V
Switch, 6mm, SMT2SW4 SW56mm x 6mm667-EVQ-Q2K01W
Other parts:
1x3, 2.54mm pitch male header1
2x5, 2.54mm pitch male header1
2x5 male header, 1.27mm pitch1
Control board
SMD parts:
Resistor, 1%1068,1R1 R2 R3 R4 R5 R6 R7 R8 R9 R100603667-ERJ-3EKF68R1V
Resistor, 1%3180R42 R60 R630603603-RT0603FRE07180RL
Resistor, 1%21.0kR61 R620603667-ERJ-3EKF1001V
Resistor, 1%23.3kR46 R470603667-ERJ-3EKF3301V
Resistor, 1%65.6kR51 R52 R53 R54 R55 R560603667-ERJ-3EKF5601V
Resistor, 1%210kR14 R160603667-ERJ-3EKF1002V
Resistor, 1%222kR57 R580603667-ERJ-3EKF2202V
Resistor, 1%333kR25 R26 R350603667-ERJ-3EKF3302V
Resistor, 1%439kR48 R49 R50 R590603667-ERJ-3EKF3902V
Resistor, 1%147kR340603667-ERJ-3EKF4702V
Resistor, 1%266.5kR27 R310603667-ERJ-3EKF6652V
Resistor, 1%8100kR12 R15 R21 R24 R29 R32 R38 R390603667-ERJ-3EKF1003V
Resistor, 1%1180kR360603667-ERJ-3EKF1803V
Resistor, 1%5200kR22 R23 R28 R33 R370603667-ERJ-3EKF2003V
Capacitor, ceramic218pFC40 C42060381-GRM185C1H180JA01J
Capacitor, ceramic2220pFC43 C44>= 16V, <= 2%060381-GRM185C1H221GA01D
Capacitor, ceramic61nFC9 C10 C11 C20 C21 C22>= 50V, <= 2%060381-GRM1885C1H102FA1J
Capacitor, ceramic8100nFC5 C15 C23 C38 C39 C45 C46 C51>= 16V060381-GRM188R71E104JA1J
Capacitor, electrolytic410uFC33 C36 C37 C41>= 16VPanasonic A598-AVE106M16B12T-F
74hc595 SIPO shift register1U4SOIC16595-CD74HC595M
MCP6002 dual op-amp R2R IO3U1 U2 U3SOIC8579-MCP6002-I/SN
TL072 dual op-amp2U5 U6SOIC8595-TL072CD
NPN transistor MMBT39042Q1 Q2SOT23863-MMBT3904LT1G
Other parts:
Tall trimmer potentiometer6B10kR18 R19 R20 R43 R44 R45https://www.thonk.co.uk/product-category/parts/pot/9mm/9mm-trimmer-pots/
from Thonk
Audio pot, dual gang1A50kR42https://www.thonk.co.uk/shop/alpha-9mm-pots-dshaft/
from Thonk
LED 3mm, red & green, diffused, common K4LED1 LED2 LED3 LED4604-WP115VEGW
Switch, 6mm3SW1 SW2 SW3612-TL1105SP-250
Cap for switch3612-1R-BK
LED 5mm, amber1L1604-WP57YYD
Thonkiconn Jack12J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11 J12https://www.thonk.co.uk/shop/thonkiconn/
from Thonk
M3 10mm female-female standoff2
M3 10mm male-female standoff2
M3 6mm screw4
SMD LED121206859-LTST-C150YKT
for jack lights
1x16, 2.54mm pitch male header2
1x16, 2.54mm pitch female header2
