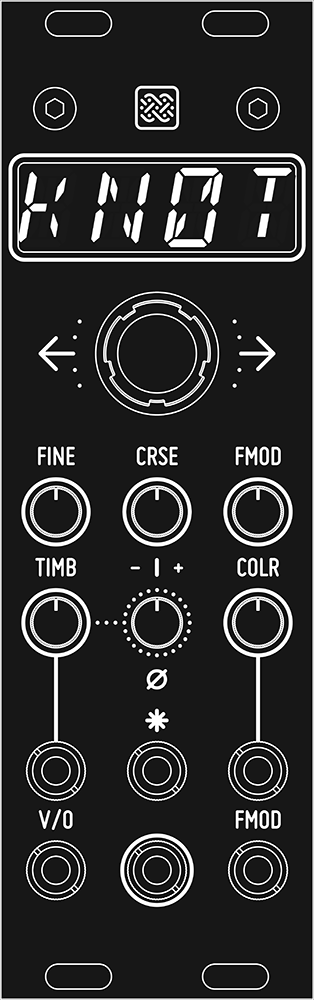

Initial release
| Name: | Qty: | Value: | Index: | Specs: | Package: | Mouser reference: | Note: | |
|---|---|---|---|---|---|---|---|---|
| Main board | ||||||||
| SMD parts: | ||||||||
| STM32F103CBT6 MCU | 1 | UC1 | LQFP48 | 511-STM32F103CBT6 | ||||
| 8 MHz quartz | 1 | Q5 | HC49 | 815-ABLS2-8-D4Y-T | ||||
| TL072 dual op-amp | 3 | U1 U2 U3 | SOIC8 | 595-TL072CD | ||||
| MCP6002 dual op-amp | 2 | U4 U5 | SOIC8 | 579-MCP6002-I/SN | ||||
| MCP3204 quad 12-bit DAC | 1 | IC4 | SOIC14 | 579-MCP3204-BI/SL | ||||
| DAC8551 single 16-bit DAC | 1 | IC5 | MSOP8 | 595-DAC8551IADGKT | ||||
| LM1117-3.3V LDO Vreg | 1 | IC6 | 3.3V | TO252 | 926-LM1117DT-3.3NOPB | |||
| LM4040 Shunt Vref | 1 | IC8 | 10V | SOT23 | 595-LM4040C10IDBZR | |||
| LM4040 Shunt Vref | 1 | IC3 | 2.5V | SOT23 | 595-LM4040C25IDBZR | |||
| MMBT3904 NPN transistor | 1 | Q6 | SOT23 | 863-MMBT3904LT1G | ||||
| 1N5819HW diode | 2 | D1 D2 | SOD123 | 621-1N5819HW-F | ||||
| Switch, 6mm, SMT | 2 | SW2 SW3 | 6x6mm | 667-EVQ-Q2K01W | ||||
| Resistor | 1 | 330 | R51 | 1% | 0603 | 603-RT0603FRE07330RL | ||
| Resistor | 1 | 4.7 | R49 | 5%, 250mW | 0603 | 667-ERJ-PA3J4R7V | ||
| Resistor | 2 | 1k | R23 R55 | 1% | 0603 | 603-RT0603FRE071KL | ||
| Resistor | 3 | 10k | R22 R27 R33 | 1% | 0603 | 603-RT0603FRE0710KL | ||
| Resistor | 11 | 24.9k | R30 R31 R34 R35 R41 R42 R43 R44 R50 R52 R53 | 1% | 0603 | 603-RT0603FRE0724K9L | ||
| Resistor | 2 | 39k | R45 R46 | 1% | 0603 | 603-RT0603FRE0739KL | ||
| Resistor | 2 | 49.9k | R25 R26 | 1% | 0603 | 603-RT0603FRE0749K9L | ||
| Resistor | 6 | 100k | R24 R29 R47 R48 R54 R56 | 1% | 0603 | 603-RT0603FRE07100KL | ||
| Resistor | 1 | 120k | R39 | 1% | 0603 | 603-RT0603FRE07120KL | ||
| Resistor | 3 | 200k | R28 R32 R40 | 1% | 0603 | 603-RT0603FRE07200KL | ||
| Resistor | 2 | 300 | R1 R2 | 1% | 0603 | 603-RT0603FRE07300RL | ||
| Capacitor, ceramic | 2 | 18pF | C9 C10 | 0603 | 80-CBR06C180J5G | |||
| Capacitor, ceramic | 1 | 47pF | C29 | >= 50V, <= 2%, C0G | 0603 | 80-C0603C470G5G | ||
| Capacitor, ceramic | 2 | 100pF | C21 C22 | >= 50V, <= 2%, C0G | 0603 | 80-C0603C101G5GAC | ||
| Capacitor, ceramic | 4 | 1nF | C13 C14 C16 C17 | >= 50V, <= 2%, C0G | 0603 | 80-C0603C102G5GAUTO | ||
| Capacitor, ceramic | 15 | 100nF | C1 C2 C3 C4 C5 C7 C11 C18 C20 C23 C26 C27 C28 C31 C32 | >= 16V | 0603 | 80-C0603C104K5REAUTO | ||
| Capacitor, ceramic | 1 | 470nF | C8 | >= 6.3V | 0603 | 80-C0603C474M3R | ||
| Capacitor, ceramic | 2 | 1uF | C6 C12 | >= 10V | 0603 | 80-C0603X105M4R | ||
| Capacitor, electrolytic NP | 1 | 10u | C24 | >= 6.3V | Panasonic B | 647-UWP1A100MCL | ||
| Capacitor, electrolytic | 2 | 22u | C15 C19 | >= 16V | Panasonic C | 667-EEE-FP1E220AR | ||
| Capacitor, electrolytic | 2 | 47u | C25 C30 | >= 25V | Panasonic D | 667-EEE-FK1V470P | ||
| SMD LED | 6 | Amber (588nm) | 1206 | 859-LTST-C150YKT | ⚠For jack lights | |||
| Other parts: | ||||||||
| 2x5, 1.27mm pitch male header | 1 | 649-221111-00010T4LF | ||||||
| 1x6, 2.54mm pitch male header | 1 | |||||||
| 1x5 2.54mm low female header | 2 | 517-929870-01-12-RA | ||||||
| 1x3, 2.54mm pitch male header | 1 | ⚠For jack lights | ||||||
| M3 4.4mm standoff | 2 | 710-9774030360R | ||||||
| M3 4mm standoff | 2 | 855-R30-1000402 | ||||||
| M3 8mm screw | 2 | |||||||
| M3 6mm scew | 2 | |||||||
| Encoder | 1 | SW1 | 858-EN11-HSM1AF15 | |||||
| Thonkiconn Jack | 6 | J1 J2 J3 J4 J5 J6 | ||||||
| Tall trimmer potentiometer | 6 | 10kB | R19 R20 R21 R36 R37 R38 | |||||
| Jumper | 1 | ⚠For jack lights | ||||||
| Display board | ||||||||
| SMD parts: | ||||||||
| SN74HC595 shift register | 2 | U$5 U$6 | TSSOP16 | 595-SN74HC595PWR | ||||
| 14 seg. 2 char LED module | 4 | U$1 U$2 U$3 U$4 | Yellow, comm. cathode | 604-ACPSC04-41SYKWA | ||||
| MMBT3904 NPN transistor | 4 | Q1 Q2 Q3 Q4 | SOT23 | 863-MMBT3904LT1G | ||||
| Resistor | 14 | 100 | R4 R5 R6 R7 R8 R9 R10 R12 R13 R14 R15 R16 R17 R18 | 1% | 0603 | 603-RT0603FRE07100RL | ||
| Resistor | 4 | 1k | R1 R2 R3 R11 | 1% | 0603 | 603-RT0603FRE071KL | ||
| Capacitor, ceramic | 2 | 100nF | C1 C3 | >= 16V | 0603 | 80-C0603C104K5REAUTO | ||
| Other parts: | ||||||||
| 1x5, 2.54mm pitch male header | 2 |
