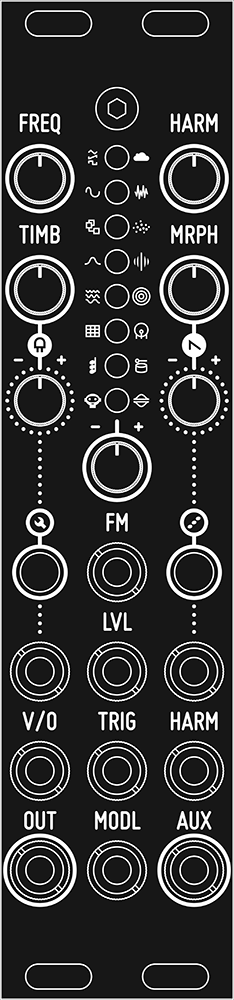

knit

PCB V1.0

INFO

CHANGELOG / NOTES

Initial release

submit a photo of your build!

Maximum file size: 3Mb

By submitting a photo you accept that the photo can be published on the Antumbra Instagram page with your profile tagged (if handle is provided) or the Antumbra website

Name:Qty:Value:Index:Specs:Package:Mouser reference:Note:
Brain board
SMD parts:
Resistor4100R5 R6 R9 R10<=1%, 100mW0603603-RT0603FRE07100RL
Resistor32.2kR11 R12 R37<=1%, 100mW0603603-RT0603FRE072K2L
Resistor310kR4 R16 R21<=1%, 100mW0603603-RT0603FRE0710KL
Resistor220kR19 R35<=1%, 100mW0603603-RT0603FRE0720KL
Resistor433kR20 R22 R28 R34<=1%, 100mW0603603-RT0603FRE0733KL
Resistor2120kR23 R36<=1%, 100mW0603603-RT0603FRE07120KL
Resistor1140kR29<=1%, 100mW0603603-RT0603FRE07140KL
Resistor1200kR27<=1%, 100mW0603603-RT0603FRE07200KL
Capacitor, ceramic220pFC14 C21>=25V, C0G, <= 5%0603581-06035A200JAT4A
Capacitor, ceramic2100pFC42 C43>= 25V, C0G, <= 5%060377-VJ0603A101JXAAC
Capacitor, ceramic61nFC33 C35 C40 C41 C48 C49>= 25V, C0G, <= 5%060380-C0603C102J5GAC
Capacitor, ceramic13100nFC6 C10 C15 C17 C18 C20 C23 C26 C27 C28 C36 C37 C45>= 25V, X5R060381-GCJ188R71H104KA2D
Capacitor, ceramic51uFC9 C19 C24 C25 C50>= 25V, X6S0603963-TMK107BJ105KA-T
Capacitor, ceramic22.2uFC29 C31>= 25V, X5R0805810-C2012X5R1E225K
Capacitor, ceramic322uFC1 C2 C13>= 25V, X5R120681-GRM31CR61E226ME5L
Capacitor, electrolytic410uFC3 C7 C22 C30>= 16VPanasonic A647-UWX1C100MCL2
Capacitor, electrolytic222uFC4 C5>= 35VPanasonic B647-UCM1V220MCL1GS
Inductor133uL10805810-MLZ2012M330WT000
EMI Filter Bead3F1 F2 F3>= 1k ohm, 300mA0603710-742792664
1N5819HW diode2D1 D2SOD123621-1N5819HW-F
Crystal18MHzQ1<= 20ppm6mm x 3.6mm815-ABMM2-8-E2T
LD2981ABU33 LDO regulator1IC33.3VSOT89-3511-LD2981ABU33
LM4040 Shunt Vref110VIC9C grade (0.5%, 100ppm)SOT23595-LM4040C10IDBZR
MCP6004 quad op-amp R2R IO1IC7TSSOP14579-MCP6004-I/ST
PCM5100APW Audio DAC1IC5SSOP20595-PCM5100APWR
STM32F373CCT6, Cortex M4 256k flash1IC4LQFP48511-STM32F373CCT6
TL072 dual op-amp1IC8TSSOP8595-TL072CPWR
Other parts:
DC-DC converter R-78E3.3-0.51IC13.3V, 500mA919-R-78E3.3-0.5
Recom R-78E3.3-0.5
2x5, 2.54mm pitch male header1
1x3, 2.54mm pitch male header1
1x4, 2.54mm pitch male header1
Control board
SMD parts:
Resistor268R4 R5<=1%, 100mW0603603-RT0603FRE0768RL
Resistor21kR46 R47<= 1%, >= 200mW0603667-ERJ-PA3D1001V
Resistor610kR3 R45 R48 R49 R50 R51<=1%, 100mW0603603-RT0603FRE0710KL
Resistor120kR32<=1%, 100mW0603603-RT0603FRE0720KL
Resistor233kR18 R31<=1%, 100mW0603603-RT0603FRE0733KL
Resistor156kR17<=1%, 100mW0603603-RT0603FRE0756KL
Resistor8100kR13 R14 R15 R24 R38 R39 R40 R41<=1%, 100mW0603603-RT0603FRE07100KL
Resistor1110kR26<=1%, 100mW0603603-RT0603FRE07110KL
Resistor1120kR33<=1%, 100mW0603603-RT0603FRE07120KL
Resistor2200kR25 R30<=1%, 100mW0603603-RT0603FRE07200KL
Capacitor, ceramic2100pFC38 C46>= 25V, C0G, <= 5%060377-VJ0603A101JXAAC
Capacitor, ceramic21nFC39 C47>= 25V, C0G, <= 5%060380-C0603C102J5GAC
Capacitor, ceramic9100nFC1 C8 C11 C12 C32 C34 C51 C52 C53>= 25V, X5R060381-GCJ188R71H104KA2D
Capacitor, electrolytic110uFC2>= 16VPanasonic A647-UWX1C100MCL2
EMI Filter Bead1F1>= 1k ohm, 300mA0603710-742792664
MCP6004 quad op-amp R2R IO1IC6TSSOP14579-MCP6004-I/ST
Ceradiode8C54 C55 C56 C57 C58 C59 C60 C610603871-B72500D160H60
BAT54S diode1D3SOT23512-BAT54S
TLC59281DBQ 16ch LED driver1IC2TSSOP24595-TLC59281DBQR
Other parts:
Thonkiconn Jack10J1 J2 J3 J4 J5 J6 J7 J8 J9 J10
LED 3mm red/green common anode8LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8696-SSLLX3059IGWCA
Lumex SSL-LX3059IGW-CA
LED holder, 0.3in8749-ERM1-300
Bivar ERM 1-300
Tall trimmer potentiometer7B10kR1 R2 R7 R8 R42 R43 R44
https://www.thonk.co.uk/shop/ttpots/
Switch, 6mm2SW1 SW2612-TL1105SP-250
E-switch TL1105SPF250Q
Cap for switch2612-1R-BK
E-switch 1RBLK
1x4, 2.54mm pitch male header7
1x4, 2.54mm pitch female header7
M3 10mm female-female standoff1
M3 10mm male-female standoff1
M3 6mm screw2
