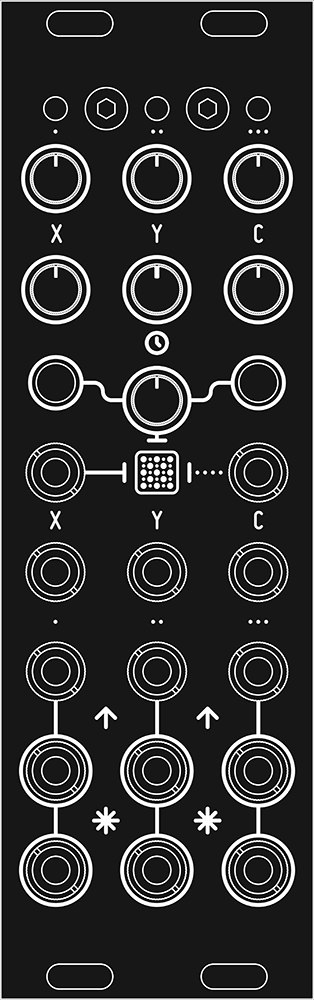

grid

PCB V1.0

INFO

CHANGELOG / NOTES

  • Initial release

submit a photo of your build!

Maximum file size: 3Mb

By submitting a photo you accept that the photo can be published on the Antumbra Instagram page with your profile tagged (if handle is provided) or the Antumbra website

Name:Qty:Value:Index:Specs:Package:Mouser reference:Note:
SMD parts:
Resistor, 1%4100R38 R39 R40 R410603603-RT0603FRE07100RL
Resistor, 1%4270R2 R3 R4 R50603603-RT0603FRE07270RL
For jack lights
Resistor, 1%1360R10603603-RT0603FRE07360RL
For jack lights
Resistor, 1%61kR42 R43 R44 R45 R46 R470603603-RT0603FRE071KL
Resistor, 1%410kR17 R23 R36 R370603603-RT0603FRE0710KL
Resistor, 1%26100kR6 R8 R9 R10 R11 R12 R13 R14 R15 R16 R18 R19 R20 R21 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R350603603-RT0603FRE07100KL
Resistor, 1%21MR7 R220603603-RT0603FRE071ML
Capacitor, ceramic218pC10 C11060380-C0603C180J5GAUTO
Capacitor, ceramic610nC1 C2 C3 C4 C5 C6060380-C0603C103J5R
Capacitor, ceramic8100nC8 C9 C13 C14 C15 C16 C17 C18>= 16V060380-C0603C104K4RECTU
Capacitor, ceramic1470nC19>= 6.3V060380-C0603C474Z4VACTU
Capacitor, electrolytic222uC7 C12>= 25VPanasonic C667-EEE-FP1E220AR
Ferrite bead1F1Z@100M > 2000603710-742792642
ATMega328p1U1TQFP32556-ATMEGA328P-AU
LM4040 Shunt Vref15.0VU2A, B or C gradeSOT23595-LM4040C50IDBZR
MCP6002 dual op-amp R2R IO3IC1 IC2 IC3SOIC8579-MCP6002-I/SN
74hc595 SIPO shift register1U3TSSOP16595-SN74HC595PWR
LM1117-5.0V LDO Vreg15.0VIC4SO223926-LM1117MPX5.0NOPB
1N5819HW diode1D1 D2SOD123621-1N5819HW-F
Quartz, 20 MHz1Q3HC49815-ABMM-20B2-T
NPN transistor MMBT39042Q1 Q2SOT23863-MMBT3904LT1G
Other parts:
1x3 Male header3JP1 JP2 JP3571-4-103321-5
2x3 Male header1P2649-67996-406HLF
2x5 Male header1P1 649-67997-410HLF
3mm yellow LED3L2 L3 L4 604-WP132XYD
Thonkiconn Jack14J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11 J12 J13 J14
https://www.thonk.co.uk/shop/3-5mm-jacks/
Tactile switch1SW1612-TL1105SP-250
Switch cap1612-1R-BK
5mm yellow LED1L1604-WP57YYD
Tall trimmer potentiometer7B10kPOT1 POT2 POT3 POT4 POT5 POT6 POT7
https://www.thonk.co.uk/product-category/parts/pot/9mm/9mm-trimmer-pots/
M3 10mm female-female standoff2
M3 6mm screw4
